Building or fixing a wall clock is super fun! But to make it work, you need the right clock motors (also called a movement), clock hands, and all the parts necessary for your clock project. The motor is like the heart of the clock—it keeps time and moves the hands.
The hands are what point to the numbers to show the time. Different components can add unique elements to your clock projects. Thus with so many options, picking the right ones can feel tricky. Don’t worry! This article will explain everything in a simple way. We’ll talk about what a quartz clock movement is, the different types of quartz clock movements, and how to choose the best motor and hands for your clock. Let’s get started!
Introduction to Clock Mechanism
A clock mechanism, also known as a clock movement, is the intricate system inside a clock that keeps time. This mechanism consists of many moving parts, including gears, wheels, and springs, all working together to measure the passage of time. The clock mechanism can be powered by various sources, such as batteries, springs, or weights, depending on the type of clock and its intended use.
For instance, quartz clocks use a battery-powered quartz crystal to regulate their timekeeping. The battery sends electricity to the quartz crystal, causing it to vibrate at a precise frequency, which in turn drives the clock’s gears and moves the hands. On the other hand, mechanical clocks rely on a wound spring or a weight to power their gears. The energy stored in the spring or weight is gradually released, moving the gears and keeping the clock running. Each type of power source has its unique advantages, making clock mechanisms versatile and adaptable to different styles and functions.
What Is a Quartz Clock Movement?
A quartz clock movement is a battery-powered device that makes your clock tick with exact precision. It’s what moves the hour hand, minute hand, and sometimes second hands to show the time. Inside the movement, there’s a tiny piece of quartz crystal. When the battery sends electricity to the crystal, it vibrates super fast—thousands of times a second! These vibrations help the clock keep super accurate time. This forms the clock mechanism.
Quartz movements are awesome because they’re:
- Accurate: They lose only a few seconds a month.
- Easy to use: Just pop in a battery (usually AA or C-cell), and they’re good to go.
- Quiet: Most don’t make loud ticking noises.
- Long-lasting: They can work for years without breaking.
Quartz movements come in different types, depending on what your clock needs. Some just show the time, while others swing a pendulum or play chime sounds. Let’s look at the four main types you can choose from!
Types of Quartz Clock Movements
There are lots of quartz clock movements, but we’ll focus on four common ones: Time-Only, High-Torque, Time with Pendulum, and Premium Chiming (QU40). Clock kits are available for these different types of movements, making it easy to find the right components for your project. Each one is great for different kinds of clocks. We’ll explain what they do, when to use them, and how to pick the right hands for them, ensuring you get the highest quality movements for your needs. Each clock kit includes all the necessary components for building a high-quality clock.

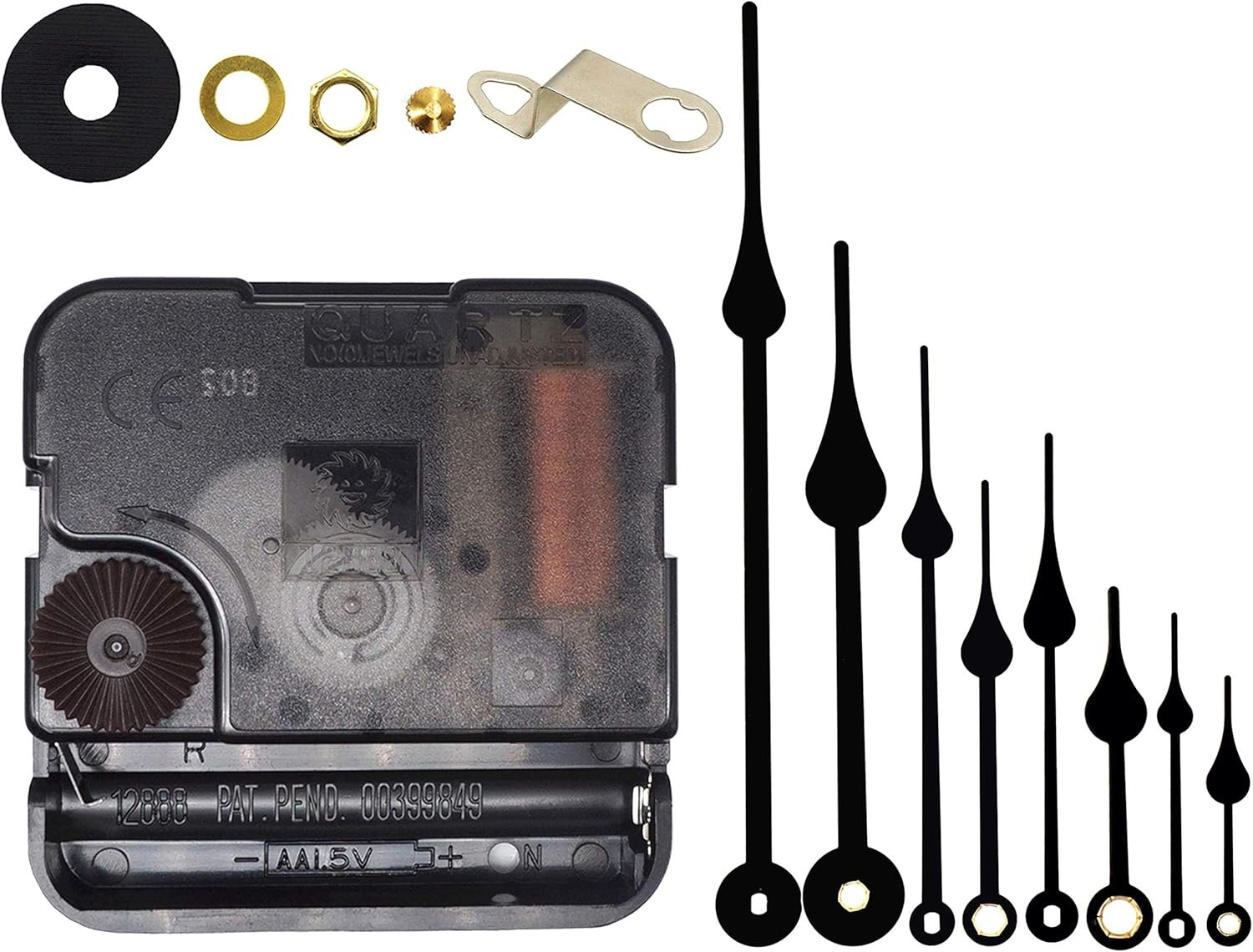

Time-Only Quartz Clock Movement
What Is It?
A Time-Only Quartz Clock Movement is the simplest kind. It just moves the hour and minute hands to show the time. Some have a second hand, too. It runs on one AA battery and is super reliable. You can easily find these movements for your clock repair needs without extensive searching. Once installed, these movements ensure reliable timekeeping for your clock.
These movements are available in different colors, including black. They are perfect for anyone looking to repair or build a clock.
When to Use It In Clock Making
This movement is perfect for small or medium-sized clocks with a variety of items available for clock projects:
- A clock face (dial) smaller than 10 inches wide (measure from the “9” to the “3”).
- Hands shorter than 5 inches (measure the minute hand from the center hole to the tip).
- Simple designs, like a basic wall clock for your kitchen or bedroom.
This movement is perfect for anyone looking to fix a simple wall clock.
It is important to select the right components, such as clock hands and hardware, to ensure the success of your DIY clock project.
How to Choose Clock Hands And Motors

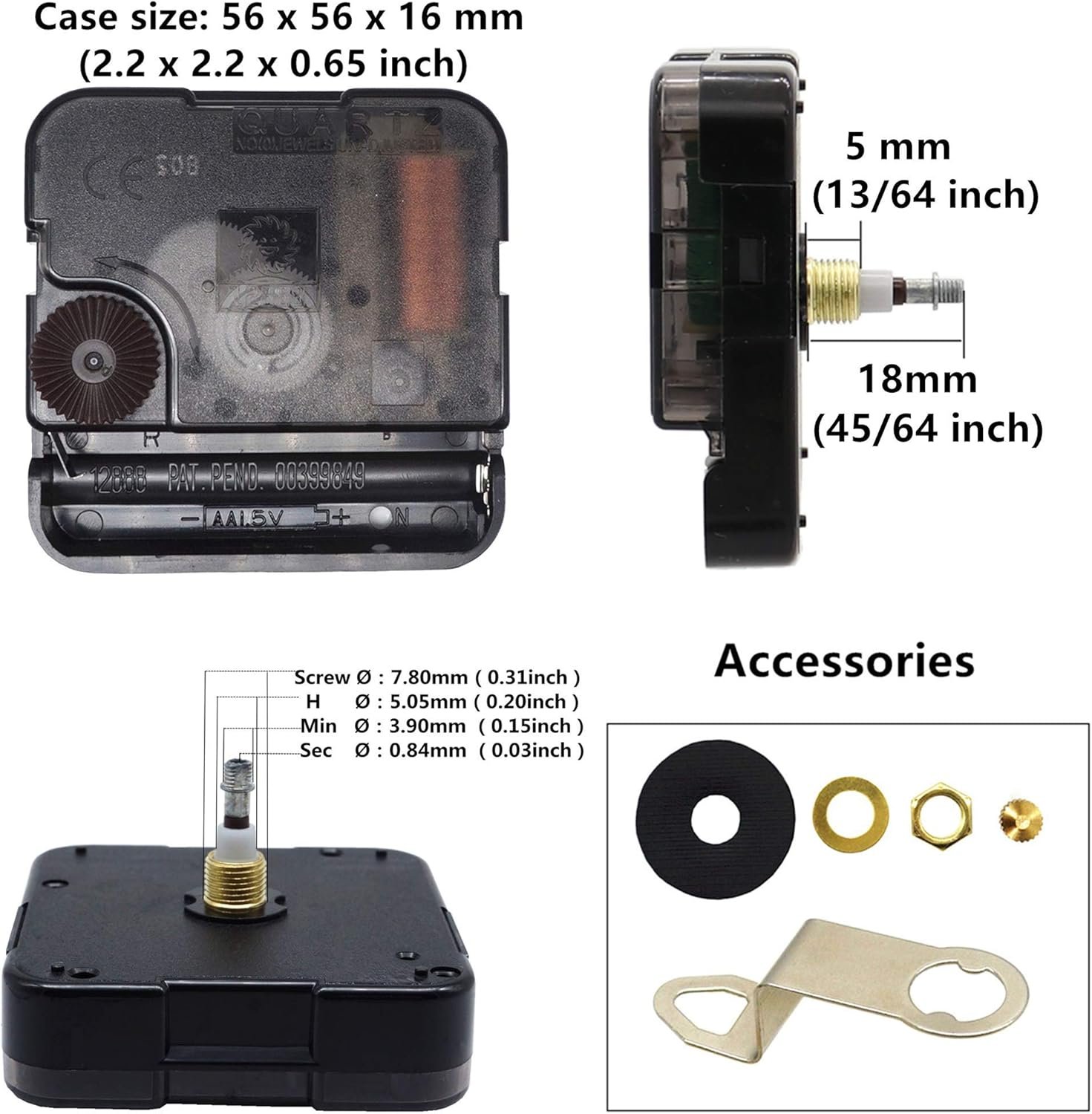

- Check the dial thickness: The movement has a shaft (the part that goes through the clock face). Measure how thick your clock face is (like the wood or metal). Pick a movement with a shaft long enough to go through and still have room for the hands. Most Time-Only movements have shafts for faces up to 3/8 inch thick.
- Pick the right hands: Choose hands that are light and short (up to 5 inches for the minute hand). Make sure they fit the movement’s shaft. Most Time-Only movements use an “I” shaft (a standard size), so most hands will work. There is a large selection of clock hands available to suit different styles and preferences.
- Look for quiet options: If you want a super quiet clock, pick a “continuous sweep” movement. The second hand moves smoothly instead of ticking every second.
Example
If you’re making a small round clock for your living room with a 6-inch face, a Time-Only movement is all you need. Pick short hands (like 3 inches) and a movement with a short shaft.
High-Torque Quartz Clock Movement
What Is It?
A High-Torque Quartz Clock Movement is a stronger version of the Time-Only movement. It has extra-powerful gears to move bigger, heavier hands. It usually runs on a C-cell battery (which lasts longer than AA) or sometimes an AA battery for smaller high-torque models.
When to Use It
This movement is great for big clocks with:
- A clock face wider than 10 inches (up to 30 inches or more!).
- Long hands (minute hand longer than 5 inches, up to 18 inches).
- Heavy hands made of metal or thick materials.
Ensuring customer satisfaction is crucial when selecting the right clock movement. We offer a variety of products for large clocks, catering to different needs and preferences.
Use it for large wall clocks, like ones in a school or a fancy living room.
How to Choose It
- Measure the dial size: If your clock face is over 10 inches wide, you need a high-torque movement to handle the weight of long hands. It’s crucial to order the right components to ensure proper functionality.
- Check the shaft length: Like with Time-Only, measure the thickness of your clock face. High-torque movements come with different shaft lengths (like 1/4 inch to 1 inch). Pick one that fits. Motors made in the USA are available, offering high quality and supporting local manufacturing.
- Choose strong hands: Pick hands that match the movement’s power. High-torque movements can handle hands up to 18 inches long, but make sure they’re not too heavy. Metal hands are okay, but super heavy ones might need a C-cell high-torque movement.
- Look for battery type: C-cell movements are stronger and last longer (sometimes years!). AA high-torque movements are good for slightly smaller clocks.
Example
If you’re building a giant 24-inch wall clock with 12-inch metal hands, a C-cell High-Torque movement is perfect. It’s strong enough to move those big hands without slowing down.
Time with Pendulum Quartz Clock Movement
What Is It?
A Time with Pendulum Quartz Clock Movement does two jobs: it moves the hands to show the time and swings a pendulum (the part that swings back and forth below the clock). The pendulum doesn’t help keep time it’s just for looks. These movements usually run on one or two AA batteries or AAA batteries, but some stronger ones use C-cells. Be sure to view the different pendulum styles available to find the perfect match for your clock, as there are various pendulums to choose from.
When to Use It
This movement is awesome for clocks that look old-fashioned, like:
- Clocks with a swinging pendulum for a classic style.
- Medium-sized clocks (dial up to 10 inches wide).
- Clocks with hands up to 5 inches long.
This movement is ideal for restoring an old clock to its former glory.
When choosing a Time with Pendulum Quartz Clock Movement, it’s crucial to ensure the reliability of the components, including the availability of different pendulum lengths.
Use it for a vintage-style wall clock in your dining room or hallway.
How to Choose It
- Check the pendulum size: The selection of the right pendulum is crucial. Most pendulum movements can swing a pendulum up to 16 inches long. If you want a longer pendulum (up to 25 inches), pick a high-torque pendulum movement.
- Measure the dial thickness: Make sure the shaft is long enough for your clock face (usually up to 3/8 inch thick).
- Pick matching hands: Choose hands up to 5 inches long for standard pendulum movements. For high-torque pendulum movements, you can use longer hands (up to 18 inches). Make sure they fit the “I” shaft.
- Check the pendulum weight: The round part at the bottom of the pendulum (called the bob) should be light (up to 100–300 grams). Check the movement’s instructions for the max weight.
- Ensure space for the pendulum: Make sure your clock has enough room below for the pendulum to swing without hitting anything.
Example
If you’re fixing a small antique-style clock with a 10-inch face and a 12-inch pendulum, a Time with Pendulum movement with an AA battery is great. Pick 4-inch hands and a light pendulum bob.
Premium Chiming Quartz Clock Movement (QU40)
What Is It?
The Premium Chiming Quartz Clock Movement (QU40) is a fancy movement that does it all! It shows the time, swings a pendulum (optional), and plays chime sounds, like the ones in a grandfather clock. It has awesome features like:
- Four chime options: Westminster, Ave Maria, Bim Bam, or Beethoven.
- A volume control to make the chimes louder or softer.
- An automatic night silence option to mute chimes at night.
- A remote speaker for amazing sound quality (like a tubular bell grandfather clock!). It runs on two C-cell batteries and has a high-torque motor for bigger clocks.
When to Use It
This movement is perfect for fancy or large clocks that require the highest quality components to ensure reliability and innovation:
- Have a clock face up to 30 inches wide.
- Use hands longer than 5 inches (up to 18 inches).
- Have a pendulum (up to 25 inches long) for a classic look.
- Play chime sounds for a special touch, like in a living room or office.
This movement offers great value with its high-quality components and multiple features.
How to Choose It Correctly
- Measure the dial size: The QU40 is high-torque, so it’s great for clocks over 10 inches wide.
- Check the shaft length: The QU40 has a shaft for faces up to 3/4 inch thick. Make sure it fits your clock face.
- Order the right components: Choose hands that fit the “I” shaft (5/16 inch diameter). The QU40 can handle long hands (up to 18 inches) or heavy metal ones.
- Choose a pendulum (optional): The QU40 can use a pendulum up to 25 inches long with a bob up to 300 grams. You can also skip the pendulum if you just want chimes.
- Plan for the speaker: The QU40’s speaker is on a wire, so you can mount it anywhere in the clock case with two screws. Make sure there’s space for it.
- Check battery needs: It uses two C-cell batteries, which last a long time because of the chimes and pendulum.
Example
If you’re building a big 20-inch wall clock with a 16-inch pendulum and want it to play Westminster chimes, the QU40 is the way to go. Pick 10-inch metal hands and a 16-inch pendulum with a light bob.
Clock Motors and Power
Clock motors, also known as clock movements, are the heart of any clock, responsible for powering the clock’s hands and keeping accurate time. There are several types of clock motors available, each suited to different needs and preferences.
Quartz clock motors are powered by a battery and use a quartz crystal to regulate their timekeeping. These motors are known for their accuracy and reliability, making them a popular choice for many clocks. They are easy to use and maintain, requiring only a simple battery replacement to keep them running smoothly.
Mechanical clock motors, on the other hand, use a spring or weight to power their gears. These motors are often found in traditional clocks and are prized for their craftsmanship and aesthetic appeal. The intricate design of mechanical motors showcases the beauty of clockmaking, with many moving parts working in harmony to keep time.
High torque clock motors are designed for clocks with large or heavy hands. These motors generate a significant amount of power, making them capable of moving long or heavy hands without losing accuracy. High torque motors are ideal for large wall clocks or clocks with metal hands, ensuring that even the heaviest components move smoothly and precisely.
How to Choose the Right Hands for Your Movement
Picking the right clock hands is just as important as choosing the movement. Here’s how to do it:
- Match the Shaft: Most quartz movements (including all four types above) use an “I” shaft (5/16 inch wide). Check that your hands fit this shaft.
- Check Hand Length:
- Time-Only: Up to 5 inches (minute hand).
- High-Torque: Up to 18 inches.
- Time with Pendulum: Up to 5 inches (or 18 inches for high-torque pendulum).
- QU40: Up to 18 inches (it’s high-torque).
- Consider Weight: Light hands (plastic or thin metal) work for Time-Only and standard pendulum movements. Heavy hands (thick metal) need High-Torque or QU40 movements.
- Select the Right Style: Choose hands that match your clock’s look—fancy hands for a vintage clock or simple ones for a modern clock. Some sets include a second hand, or you can buy it separately. Selecting the right hands from a variety of styles and sizes ensures your clock is both functional and aesthetic. Selecting new hands that match your clock’s style is crucial for both functionality and aesthetics.
- Test the Fit: After installing, make sure the hands don’t touch each other or the clock face. If they do, bend them slightly to clear.
Clock Movement Installation
Installing a clock movement is a crucial step in repairing or building a clock, and while it can be complex, it is essential for ensuring the clock functions correctly. Here’s a step-by-step guide to help you through the process:
- Select the Correct Movement: Choose a movement that matches the type of clock, its size, and its power requirements. Consider factors like the clock face size, hand length, and whether you need a high torque movement for heavier hands.
- Attach the Movement to the Back Plate: Secure the movement to the clock’s back plate. This involves aligning the movement with the mounting hole and fastening it securely. Ensure that the movement is centered and stable.
- Connect the Clock Hands: Attach the hour hand, minute hand, and second hand (if applicable) to the movement’s shaft. Make sure the hands are properly aligned and not touching each other or the clock face. This step requires precision to ensure the hands move freely and accurately.
- Align and Adjust the Movement: Once the hands are attached, align the movement to ensure it keeps accurate time. This may involve minor adjustments to the hands and the movement itself. Test the clock to ensure it is functioning correctly and make any necessary tweaks.
By following these steps, you can successfully install a clock movement and ensure your clock is ready to keep accurate time.
Clock Maintenance and Upkeep
Regular maintenance and upkeep are essential for ensuring that a clock continues to function properly over time. Here are some key tips to help you maintain your clock:
- Regular Cleaning and Lubrication: Clean the clock’s movement periodically to remove dust and debris that can affect its performance. Lubricate the gears and moving parts to reduce friction and wear. Use clock-specific lubricants to ensure optimal performance.
- Inspect the Hands and Dial: Regularly check the clock’s hands and dial for signs of wear or damage. Ensure the hands are not bent or touching the clock face, as this can affect timekeeping. Replace any worn or damaged parts promptly.
- Battery Replacement: For quartz clocks, replace the battery regularly to ensure continuous operation. A fresh battery will keep the clock running accurately and prevent interruptions in timekeeping.
- Winding the Spring or Weight: For mechanical clocks, regularly wind the spring or weight to keep the clock running. Follow the manufacturer’s instructions for winding to avoid over-winding or damaging the mechanism.
- Adjusting Timekeeping: Periodically check the clock’s accuracy and make any necessary adjustments. This may involve fine-tuning the movement or adjusting the hands to ensure the clock keeps accurate time.
By following these maintenance tips, you can extend the life of your clock and ensure it continues to keep accurate time for years to come. Regular upkeep not only preserves the clock’s functionality but also its aesthetic appeal, making it a cherished timepiece in your home.
Let’s Build That Clock!
Choosing the right quartz clock movement and hands is the key to making a wall clock that looks great and works perfectly. There are a variety of products available, whether you pick a simple Time-Only movement for a small clock, a High-Torque one for a big clock, a Time with Pendulum for a classic look, or a Premium Chiming QU40 for fancy chimes and a pendulum, you’re on your way to a awesome project. Measure your clock carefully, choose hands that fit, and have fun building or fixing your clock!
